Automatic Weighing and Distribution System for Powder Chemicals
Automatic Weighing and Distribution System for Powder Chemicals
The right solution for powder chemicals
Integrating powder chemicals into the automation process removes one of the most labor-intensive tasks in a plant. Incorrect weighing hurts shade consistency, so amounts must be tightly controlled.
Weighing and dissolving powders into the dyeing machine’s addition tanks causes several problems, and they grow with the large quantities used, especially for darker colors that need considerably more chemical.
- 48transfer points
- 350 lt/mindispensing speed
Most accurate and safe solution for hypochlorite chemical dispensing

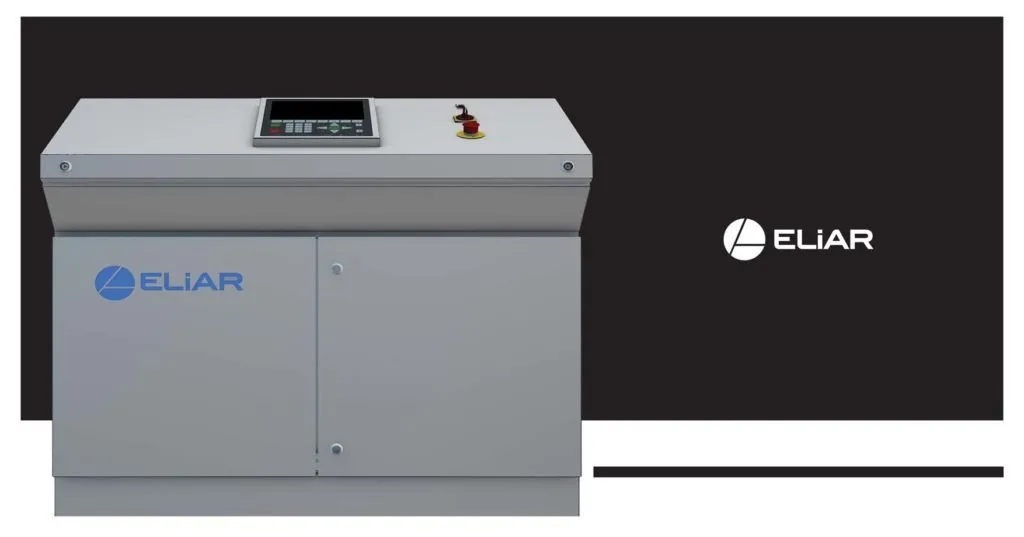

SLD MR suits dyehouses of any size. Dissolved powder chemicals can be dispensed to 48 transfer points at 350 liters a minute. Because weighing and dispensing happen at the same time, no storage bucket or parking area is needed.
It is the most accurate and easiest-to-use powder chemical dispensing system, designed by ELİAR with 35 years of experience to maximize dyehouse efficiency.
Key features
Low labour cost
Manual transportation and dissolving of powder chemicals is a very labor intensive task. With SLD Mineral, a small touch on the computer screen accomplishes the whole task.
- Low labour cost
- Easy to use
High flowrate pump
A high flow rate pump makes it possible to cater even to the highest hypochlorite consuming recipes.
- Extremely fast
- Zero delay
Optional dissolving unit
With the optional dissolving tank, bleaching agents in powder form such as calcium chlorite can be dissolved in a controlled manner. Water amount and dissolving time can be programmed for specific chemicals. At the end of the dissolving process, chemicals are pumped to storage tanks, and finally the unit washes itself clean. All of these procedures run automatically.
- Special dissolver
- Optional features
Automated circulation control
If any chemical needs circulation, SLD Mineral can circulate the related chemical automatically.
- Pipeline anti freeze system
- Automatic circulation
Ready for future
SLD Mineral is an Industry 4.0 ready, full-automatic chemical weighing and dispensing system. It is also integrated into your dyehouse systems through Teleskop software by ELİAR, which lets you work in touch with other machines and collect data throughout the dyeing process.
- Industry 4.0 ready
- Compatible to all powder chemicals
- Eliar software
Single line distributor
The technological concept of the single line distribution system relies on the usage of 2 or 3 way valves. When the number of machines increases, it is easy to adapt the system simply by adding valves. Eliar provides optional special hardware for testing line leakage or valve defects on distribution lines.
- Easy to expand
- Line leakage control
Brochure (PDF)
Questions about the SLD MR
Who supplies the SLD MR in Pakistan?
EH Automation Services is the official representative of Eliar Elektronik in Pakistan. We supply the SLD MR together with its installation, commissioning, operator training and after-sales support.
How do I get a quotation for the SLD MR?
Send the quotation form or call +92 322 6096616. Tell us which machines you run and what you want to automate. We usually reply within 24 hours and can arrange a visit to your mill before we quote.
Can the SLD MR be added to machines we already run?
Yes. Eliar mechatronic are fitted to existing dyehouse equipment as well as to new lines. Our engineers check your machines first, then agree the scope of the installation with you.
