Fully Automatic Powder Dyestuff Weighing Dissolving System
Fully Automatic Powder Dyestuff Weighing Dissolving System
Largest, fastest, most accurate for your main color
Weighing, dissolving and distributing dyestuff in large quantities is essential for dyehouses, especially for main colors.

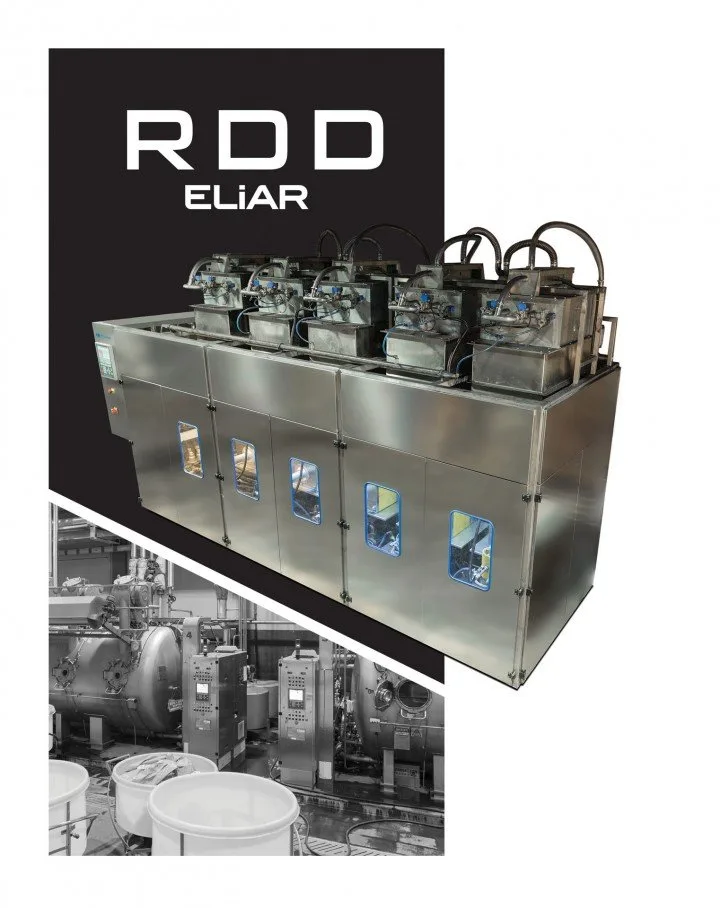

RDD uses a continuous dosing, dissolving and distribution system. Because it does not wait between batches, it is faster than conventional batch-type systems. It can send up to 430 kg of dyestuff at once with 0.1% accuracy.
- 430 kgsent at once
- 0.1%accuracy
Fast, accurate and continuous distribution
RDD distributes dyestuff while it is being weighed and dissolved, so the process does not run as separate batches of dosing, dissolving and distributing.
Output is not limited by the dosing unit’s capacity: all the dyestuff ready in the hopper can be sent continuously.
RDD was designed by ELİAR, with 35 years of experience, to solve bulk dyestuff weighing, dissolving and distribution problems for dyehouse owners.
Key features
Modular and flexible design
RDD is produced to your demand. Hoppers are made from high-quality certified materials in two optional volumes, 330 or 430 lt. An RDD system starts with an Automation Cabin and continues with Hopper Cabins. You can choose serial modules to combine one after another to build your own RDD system out of 1 or 2 Hopper Cabins, with no limit on adding Hopper Cabins in series.
- Fits all dyestuff groups automatically
- 330 lt and 430 lt hopper volume options
Fast and accurate process
RDD doesn’t stop your dyeing machines but feeds them continuously. The transfer pump has a 10 kg/min flow rate and can send the whole capacity of the hopper at once. Accuracy is high precision, with 0.1% accuracy and a maximum 2 gr tolerance.
- 0.1% weighing accuracy
- Automatic calibration
- Patented design
The new “Simultaneous Processing System” (SPS)
RDD speeds up the process thanks to the new simultaneous weighing and dissolving system. Each dye has its own dissolving station and doesn’t require any cleaning process like conventional systems.
- Each hopper is a separate weigher and dissolver
- Simultaneous weighing and dissolving process
Just in time delivery for all quantities
RDD distributes the dyestuff as it is weighed and dissolved, continuously on the flow way out. You don’t have to wait for a batch process to first dose, then dye, then distribute. You get what you need as soon as you order, Just in Time, with no waiting and no batch process.
- 25 kg/min hopper filling speed
- Just in time delivery
Questions about the RDD
Who supplies the RDD in Pakistan?
EH Automation Services is the official representative of Eliar Elektronik in Pakistan. We supply the RDD together with its installation, commissioning, operator training and after-sales support.
How do I get a quotation for the RDD?
Send the quotation form or call +92 322 6096616. Tell us which machines you run and what you want to automate. We usually reply within 24 hours and can arrange a visit to your mill before we quote.
Can the RDD be added to machines we already run?
Yes. Eliar mechatronic are fitted to existing dyehouse equipment as well as to new lines. Our engineers check your machines first, then agree the scope of the installation with you.
