Fully Automatic Powder Dyestuff Weighing Dissolving System
Fully Automatic Powder Dyestuff Weighing Dissolving System
A new era starts

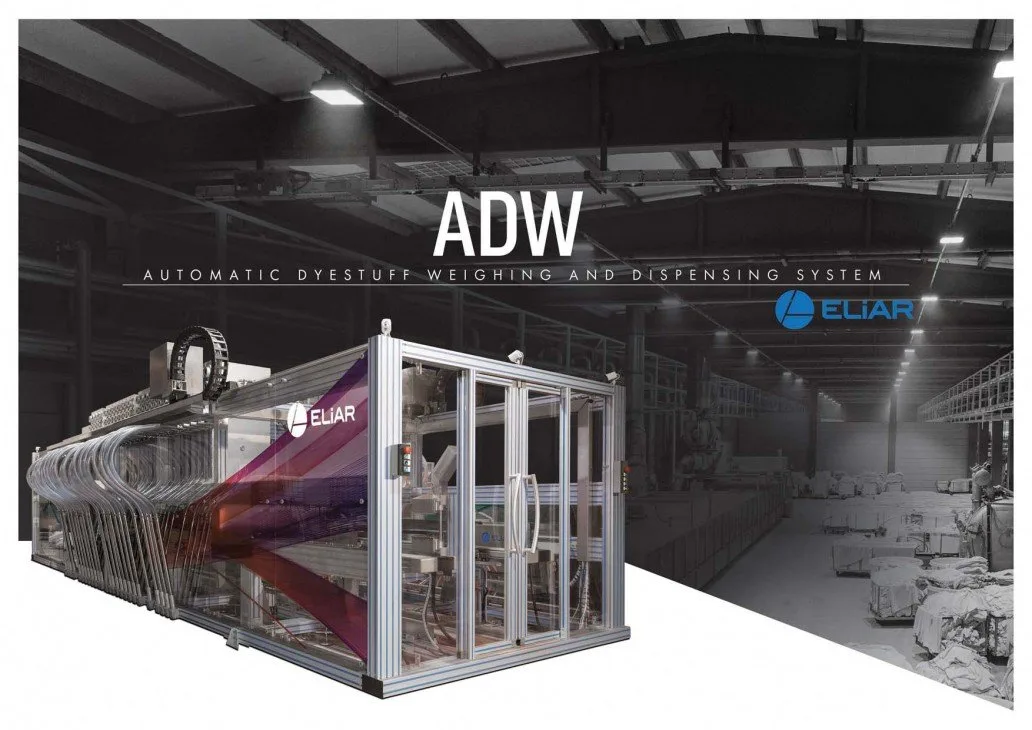

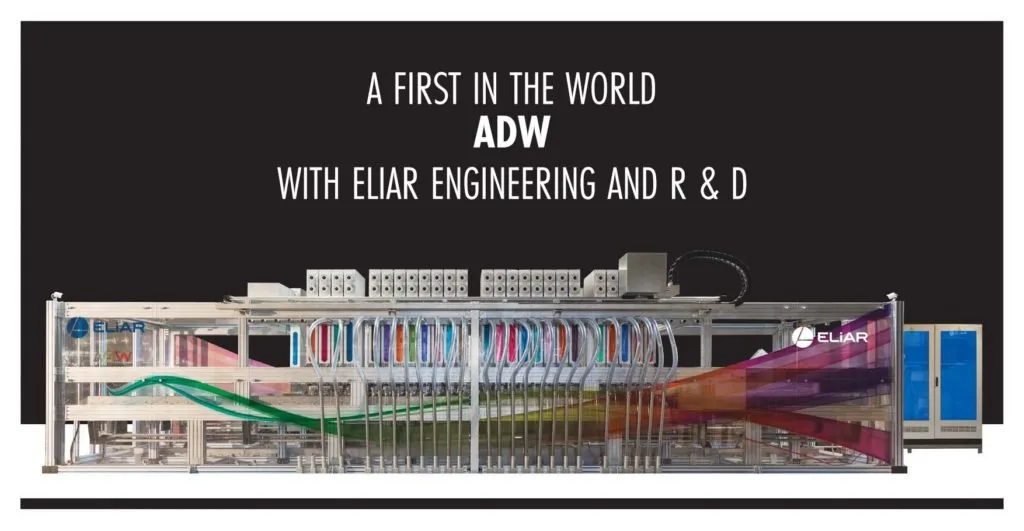

ADW is Eliar’s innovative Just in Time (JIT) dyestuff distributing system, built for dyehouses that want faster dyeing, repeatable quality and higher efficiency. It draws on 35 years of Eliar engineering experience.
Thanks to its double axis process system, ADW weighs and dissolves up to 10 kg of dyestuff in only 7.5 minutes, with just 20 mg tolerance.
- 20 mgweighing accuracy
- 16 to 80in-hopper modules
- 2 axeswork at the same time
- 46dyeing machines served
Key features
Modular in-hopper designMIHD
ADW is built in modules of 16 hoppers with no extra floor space, and grows to 32, 48, 64 or even 80 hoppers as your demand grows. Each hopper holds 90 lt.
- Fits all dyestuff groups automatically
- 90 lt anodized aluminium hoppers
Flexible weighing modesFWM
Choose by priority: Smart Weighing Mode for speed, or Precise Weighing Mode for accuracy of ±20 mg.
- 20 mg weighing accuracy
- Automatic calibration
- Fast and accurate
Simultaneous processing systemSPS

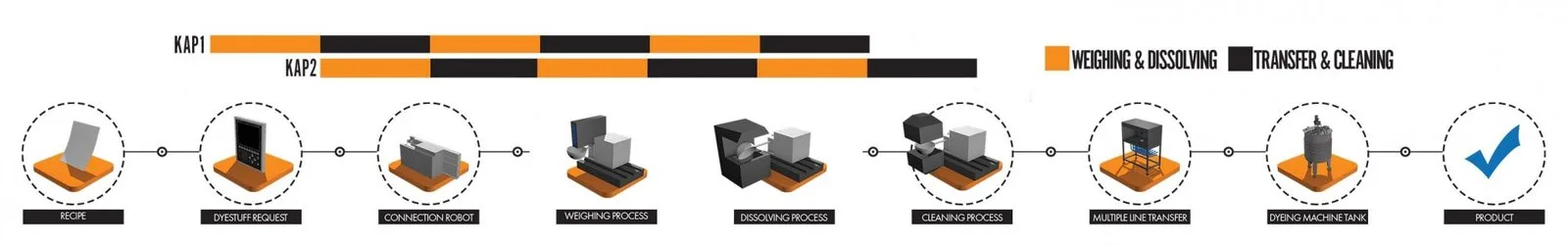

Weighing and dissolving happen at the same time. You are not limited to stock kegs reserved in a parking area: get the dissolved dyestuff you need, when you need it. Just in Time.
- Weighing and dissolving simultaneous
- Special steam and dust buster system
Double axis process systemDAPS
ADW doubles the speed of the process with two simultaneous weighing robots and dissolving units working in two independent axes.
- Double axis design
- Simultaneous 2 weighing and dissolving operation
Industry 4.0 ready, full automatic
ADW weighs, dissolves and distributes dyestuff with no manual operator control. It is integrated with your dyehouse systems through Eliar’s Teleskop software, so it works with your other machines and collects data throughout the dyeing process.
- Industry 4.0 standard
- Integrated with the dyehouse
- Eliar software
Distribution options
ADW comes with special multiline distributors in two options, 16 outlets or 23 outlets. With the additional dispensing unit it covers the liquid chemical needs of 46 dyeing machines, delivering the right dyestuff to the right machine at the right time.
- Multiline distribution
- Just in Time
Questions about the ADW
Who supplies the ADW in Pakistan?
EH Automation Services is the official representative of Eliar Elektronik in Pakistan. We supply the ADW together with its installation, commissioning, operator training and after-sales support.
How do I get a quotation for the ADW?
Send the quotation form or call +92 322 6096616. Tell us which machines you run and what you want to automate. We usually reply within 24 hours and can arrange a visit to your mill before we quote.
Can the ADW be added to machines we already run?
Yes. Eliar mechatronic are fitted to existing dyehouse equipment as well as to new lines. Our engineers check your machines first, then agree the scope of the installation with you.
