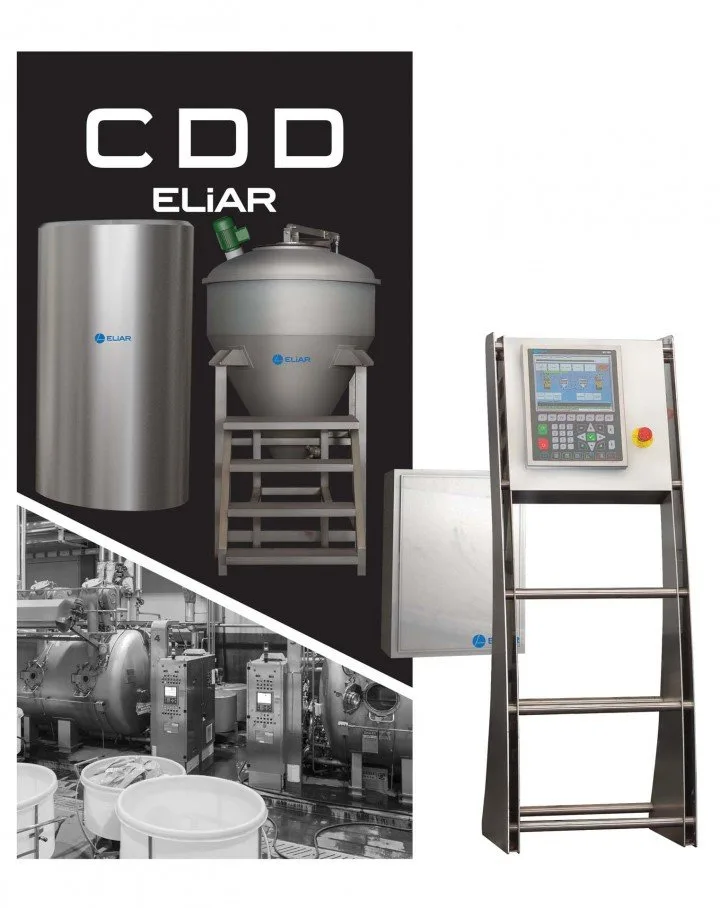

Powder Dyestuff Dissolving and Distribution System
Powder Dyestuff Dissolving and Distribution System
Smart learning and zero risk
Dissolving and transferring powder dyestuff is difficult in a dyehouse. CDD learns the dissolving procedure for each dyestuff type and can handle any batch size or dyestuff type.
Combined with the multiline distribution system, CDD transfers dissolved dyestuff with no risk.
High capacity, low cost, reliable processes
CDD’s smart learning system sequences the dissolving of different powder dyestuff types with no delays, so bulk dissolving runs without problems.
Dissolving uses variable time and temperature profiles based on the amount and type of dyestuff, so quality stays repeatable across sequential runs.

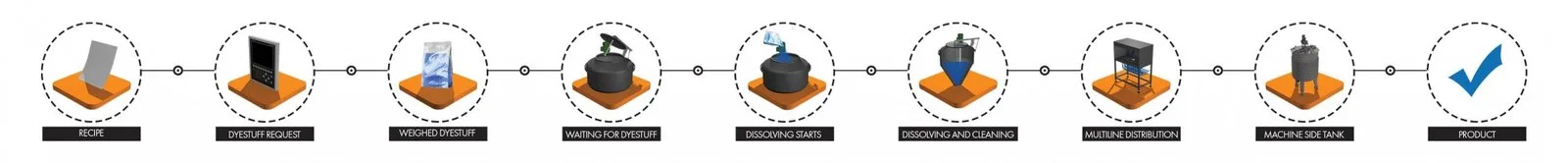

The multiline distribution system lets one centralized system control the whole process, from dissolving to delivery at the machines. A fully internal equipment design keeps maintenance costs low.
It was designed by ELİAR’s engineering team, drawing on 35 years of experience. ELİAR is a leading worldwide supplier of textile industry automation products.
Key features
Modular design
CDD is produced modularly according to your needs in your dyehouse. With 200 liter and 500 liter options for dissolving tanks, Eliar can cover your needs with variable tank capacities.
- Automatic adjustment for each dyestuff type
- Tailored solution for your dyehouse
Smart scenarios for dye dissolving
CDD is a unique solution for powder dyestuff dissolving. Dissolving scenario data for each dyestuff is entered into the system to instruct it for different dyes. The system automatically carries out the dissolving processes for the weighed dyestuff. There is no chance of fault with its smart learning system.
- Variable dissolving scenarios
- Repeatability
- Smart learning
Always ubiquitous
CDD does not delay the process because of heating water. With its special hot water preparation tanks, it always keeps the hot water at the required temperature. Thanks to the internal exchanger inside the dissolving tanks, water can be kept at the same temperature during the dissolving process.
- Dissolving with heating system
- Special water tank with heating system
Ready for future
CDD is an Industry 4.0 ready, full-automatic dyestuff dissolving and distributing system. It is also integrated into your dyehouse systems through Teleskop software by ELİAR, which lets you work in touch with other machines and collect data throughout the dyeing process.
- Industry 4.0 ready
- Compatible to all kinds of dyestuffs
- Eliar software
Distribution options
CDD is integrated with its special multiline distributors. There are two distribution unit options with 16 outlets and 23 outlets. With the additional dispensing unit, CDD can cover the requirements of 46 dyeing machines for dyestuff. Eliar warrants the dispensing in the right time with the right dyestuff to the right machine with its Just in Time discipline.
- Multiline distribution
- Just in time
Questions about the CDD
Who supplies the CDD in Pakistan?
EH Automation Services is the official representative of Eliar Elektronik in Pakistan. We supply the CDD together with its installation, commissioning, operator training and after-sales support.
How do I get a quotation for the CDD?
Send the quotation form or call +92 322 6096616. Tell us which machines you run and what you want to automate. We usually reply within 24 hours and can arrange a visit to your mill before we quote.
Can the CDD be added to machines we already run?
Yes. Eliar mechatronic are fitted to existing dyehouse equipment as well as to new lines. Our engineers check your machines first, then agree the scope of the installation with you.
