Automatic Weighing and Distribution System for Liquid Chemicals
Automatic Weighing and Distribution System for Liquid Chemicals
The right solution for all liquid chemicals

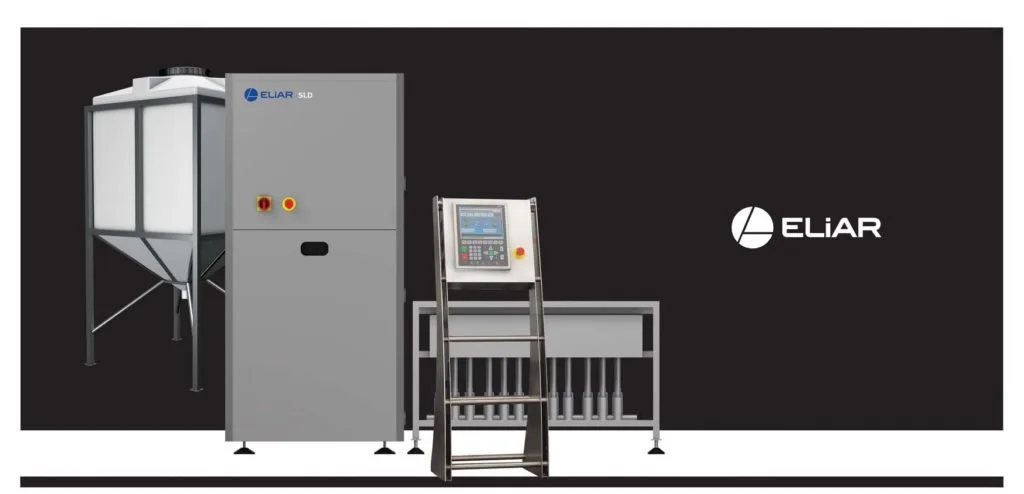

Weighing and dispensing liquid chemicals is one of the most important steps in dyeing. SLD handles all liquid chemical weighing and dispensing tasks, and its modular single-line design makes it easy to expand with additional pipes and valves.
- 48liquid chemicals
- 50transfer points
- 40 lt/mindispensing speed
- 1,800transfers a day
Only one system can cover all the chemical requirements of your dyehouse
SLD suits every dyeing process and dyehouse condition. It dispenses up to 48 liquid chemicals to up to 50 transfer points at 40 liters a minute.
A special double pump and flowmeter design lets one unit make 1,800 transfers a day without delay or misrouting.

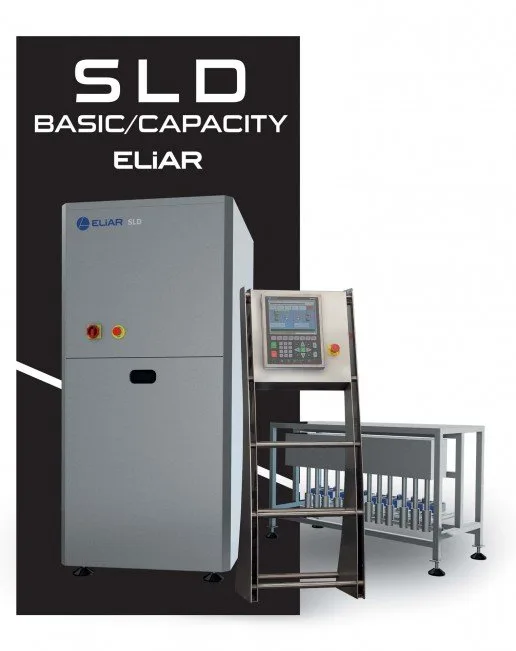

SLD is Eliar’s most advanced and reliable single-line liquid chemical dispensing system, drawing on 35 years of experience.
Key features
Special chemicals collector
The number of chemicals on SLD can easily be increased from 4 up to 48 with the combination of its “special chemicals collectors”, which also simplifies the task of cleaning.
- Variable chemicals quantity
- Reliable cleaning
Two simultaneous operations
SLD can weigh a chemical while a second one is being transferred to the dispensing point. In other words, two operations can be executed simultaneously, so operation time is reduced dramatically.
- Zero delay
- Two outlets
Stock control and silo filling system
SLD’s silo filling system is covered with Poka-Yoke mistake proofing disciplines. With its special software and camlock integrated pumps, Eliar ensures 100% zero fault when filling a chemical into the right silo at high speed. With the help of level sensors, the system avoids chemical overload or fully discharging the chemical silos.
- Stock control and silo filling software
- Poka-Yoke (mistake proofing)
Single line distributor
The technological concept of the single line distribution system relies on the usage of 2 or 3 way valves. When the number of machines increases, it is easy to adapt the system simply by adding valves. Eliar provides optional special hardware for testing line leakage or valve defects on distribution lines.
- Easy to expand
- Line leakage control
Ready for future
SLD is an Industry 4.0 ready, full-automatic chemical weighing and dispensing system. It is also integrated into your dyehouse systems through Teleskop software by ELİAR, which lets you work in touch with other machines and collect data throughout the dyeing process.
- Industry 4.0 ready
- Compatible with all powder chemicals
- Eliar software
Robotic dispensing option
SLD has an optional feature for multiline dispensing with the Eliar Robotic Distribution Unit. With the help of Eliar DU, dispensing processes become multiline. With the advantages of its valve free system, there are no huge maintenance and repair costs. Eliar warrants the dispensing in the right time with the right dyestuff to the right machine with its Just in Time discipline.
- Optional robotic distribution
- Low maintenance costs
- Just in time
Questions about the SLD
Who supplies the SLD in Pakistan?
EH Automation Services is the official representative of Eliar Elektronik in Pakistan. We supply the SLD together with its installation, commissioning, operator training and after-sales support.
How do I get a quotation for the SLD?
Send the quotation form or call +92 322 6096616. Tell us which machines you run and what you want to automate. We usually reply within 24 hours and can arrange a visit to your mill before we quote.
Can the SLD be added to machines we already run?
Yes. Eliar mechatronic are fitted to existing dyehouse equipment as well as to new lines. Our engineers check your machines first, then agree the scope of the installation with you.
