Seam Detector
New generation seam sensor with twin inductive technology.

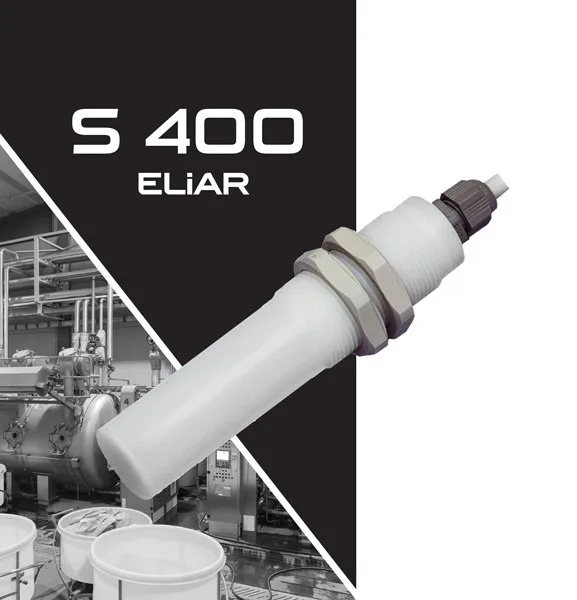

Seam detector
S400 is a new generation sensor with “twin” inductive technology. Dual processors track the seam magnet for guaranteed detection.
Its single-piece, compact design saves space in the control panel, and sensitivity can be adjusted (Hi-Lo). It gives seam detection with high and normal sensitivity signals, and is a guaranteed solution for seam detection in fabric unloading, sampling and cycle control. Designed by ELİAR from 35 years of engineering experience, with both hardware and software produced by ELİAR.
- 0.1-10 m/ssensing speed
- 0-35 cmhigh sensitivity distance
- 24 V DCsupply voltage
- IP67environmental rating

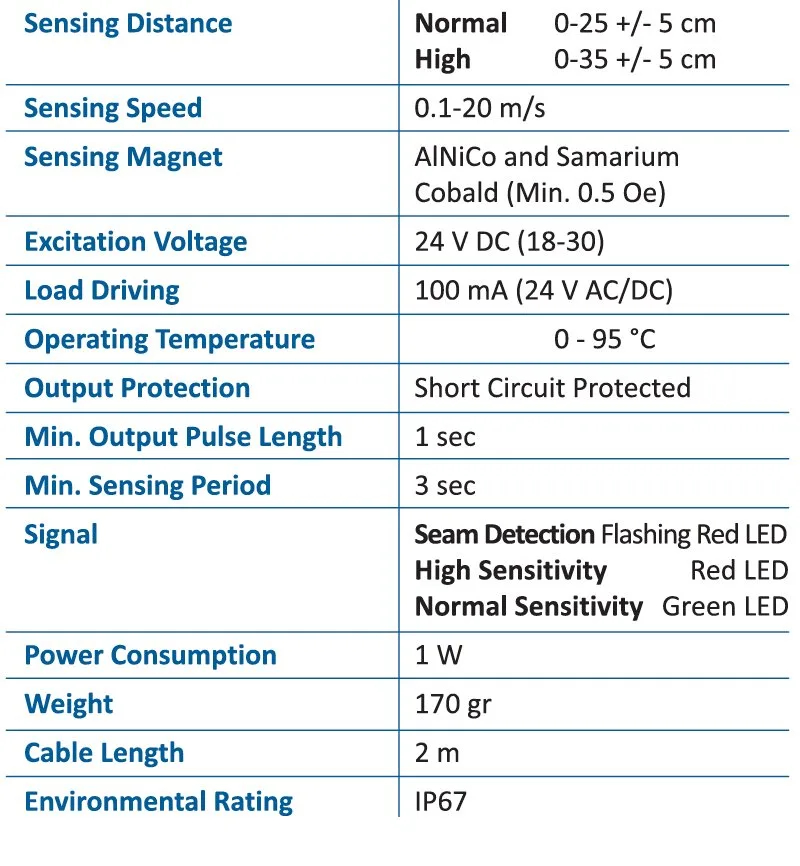

Technical specifications
- Sensing distance, normal
- 0-25 +/- 5 cm
- Sensing distance, high
- 0-35 +/- 5 cm
- Sensing speed
- 0.1-10 m/s
- Sensing magnet
- AlNiCo and samarium cobalt (min. 0.5 Oe)
- Excitation voltage
- 24 V DC (18-30)
- Output
- Normally open contact (MOSFET)
- Load driving
- 100 mA (24 V AC/DC)
- Operating temperature
- 0-95 °C
- Output protection
- Short circuit protected
- Min. output pulse length
- 1 sec
- Min. sensing period
- 3 sec
- Signal
- Seam detection: flashing red LED. High sensitivity: red LED. Normal sensitivity: green LED
- Power consumption
- 1 W
- Weight
- 170 gr
- Cable length
- 2 m
- Environmental rating
- IP67
Questions about the S400
Who supplies the S400 in Pakistan?
EH Automation Services is the official representative of Eliar Elektronik in Pakistan. We supply the S400 together with its installation, commissioning, operator training and after-sales support.
How do I get a quotation for the S400?
Send the quotation form or call +92 322 6096616. Tell us which machines you run and what you want to automate. We usually reply within 24 hours and can arrange a visit to your mill before we quote.
Can the S400 be added to machines we already run?
Yes. Eliar sensors are fitted to existing dyehouse equipment as well as to new lines. Our engineers check your machines first, then agree the scope of the installation with you.
