Hydrostatic Level Sensors
Air isolated hydrostatic level sensor with a 4-20 mA current loop.
P3XX hydrostatic level sensors
P3xx works by measuring the water pressure, which is proportional to the water level in a tank. The output is a standard two-wire, 4-20 mA current loop.
The sensor needs an air isolated mounting method, and it should be positioned above the highest water level. Designed by ELİAR from 35 years of engineering experience, with both hardware and software produced by ELİAR.

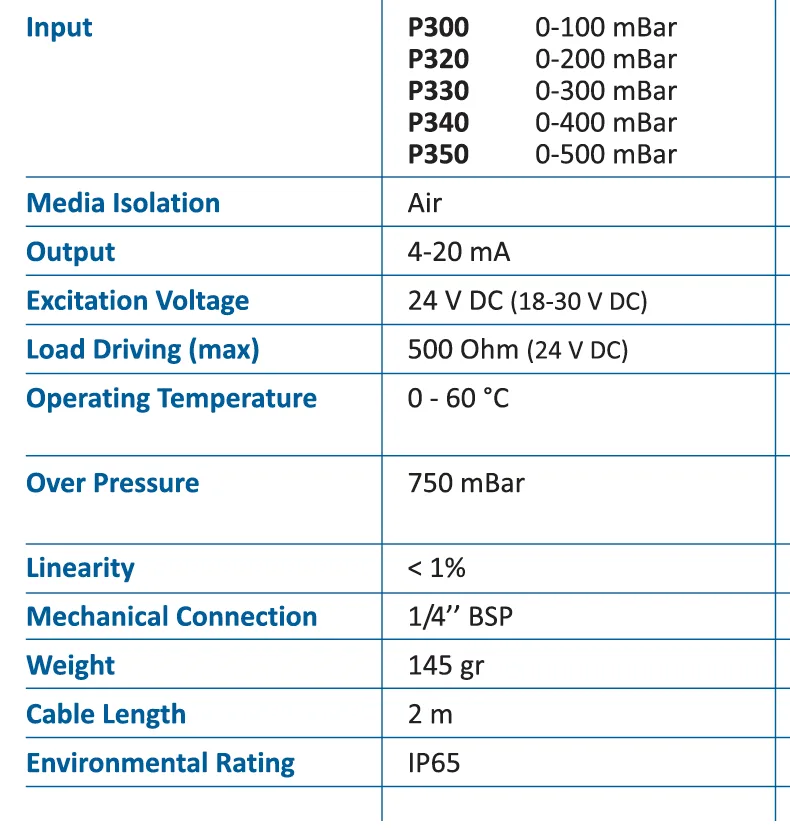

Technical specifications
- P300
- 0-100 mBar
- P320
- 0-200 mBar
- P330
- 0-300 mBar
- P340
- 0-400 mBar
- P350
- 0-500 mBar
- Media isolation
- Air
- Output
- 4-20 mA
- Excitation voltage
- 24 V DC (18-30 V DC)
- Load driving (max)
- 500 Ohm (24 V DC)
- Operating temperature
- 0-60 °C
- Over pressure
- 750 mBar
- Linearity
- < 1 %
- Mechanical connection
- 1/4” BSP
- Weight
- 145 gr
- Cable length
- 2 m
- Environmental rating
- IP65
