Seam Detector
Inductive seam sensor with the best price-to-performance ratio.
Seam detector
S40 is a new generation sensor with inductive technology. Its single-piece, compact design saves space in the control panel, and sensitivity can be adjusted.
It suits seam detection for fabric unloading and circulation period monitoring, and offers the best price-to-performance ratio for basic seam detection. Designed by ELİAR from 35 years of engineering experience, with both hardware and software produced by ELİAR.
- 0.1-10 m/ssensing speed
- 0-35 cmhigh sensitivity distance
- 24 V DCsupply voltage
- IP67environmental rating

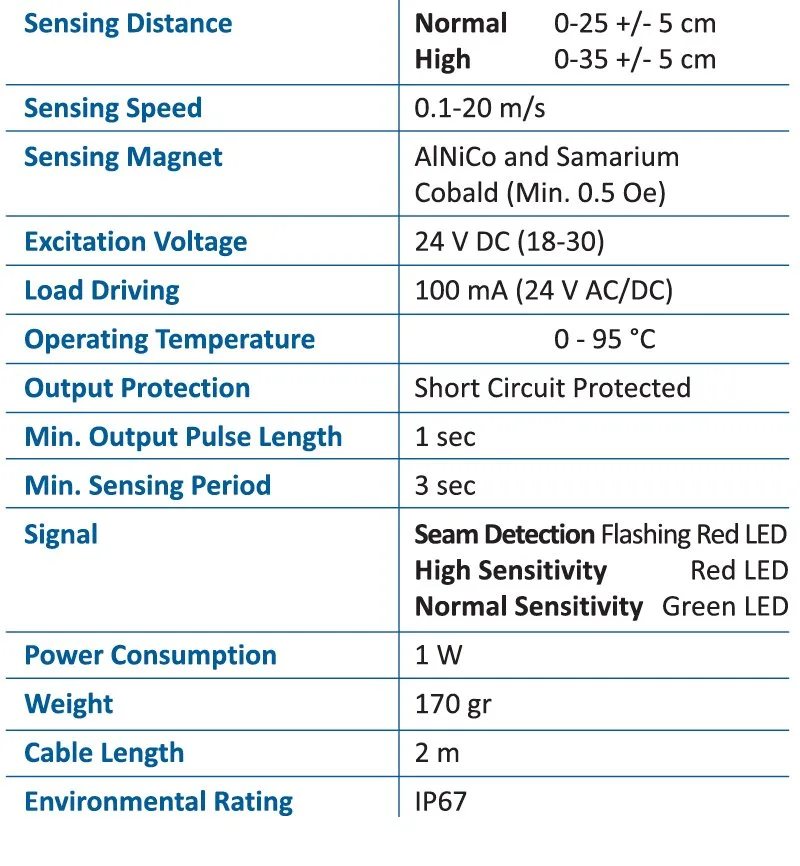

Technical specifications
- Sensing distance, normal
- 0-25 +/- 5 cm
- Sensing distance, high
- 0-35 +/- 5 cm
- Sensing speed
- 0.1-10 m/s
- Sensing magnet
- AlNiCo and samarium cobalt (min. 0.5 Oe)
- Excitation voltage
- 24 V DC (18-30)
- Output
- Normally open contact (MOSFET)
- Load driving
- 100 mA (24 V AC/DC)
- Operating temperature
- 0-95 °C
- Output protection
- Short circuit protected
- Min. output pulse length
- 1 sec
- Min. sensing period
- 3 sec
- Signal
- Seam detection: flashing red LED. High sensitivity: red LED. Normal sensitivity: green LED
- Power consumption
- 1 W
- Weight
- 170 gr
- Cable length
- 2 m
- Environmental rating
- IP67
Questions about the S40
Who supplies the S40 in Pakistan?
EH Automation Services is the official representative of Eliar Elektronik in Pakistan. We supply the S40 together with its installation, commissioning, operator training and after-sales support.
How do I get a quotation for the S40?
Send the quotation form or call +92 322 6096616. Tell us which machines you run and what you want to automate. We usually reply within 24 hours and can arrange a visit to your mill before we quote.
Can the S40 be added to machines we already run?
Yes. Eliar sensors are fitted to existing dyehouse equipment as well as to new lines. Our engineers check your machines first, then agree the scope of the installation with you.
