Hydrostatic Level Sensors
DIN rail mounted hydrostatic level sensor with good cost-to-performance value.
P4 Serie hydrostatic level sensors
The P4 series measures the water pressure, which is proportional to the water level in a tank, and gives a standard two-wire 4-20 mA current loop.
It mounts on a DIN rail inside the control panel and offers good cost-to-quality and cost-to-performance value. Designed by ELİAR from 35 years of engineering experience, with both hardware and software produced by ELİAR.

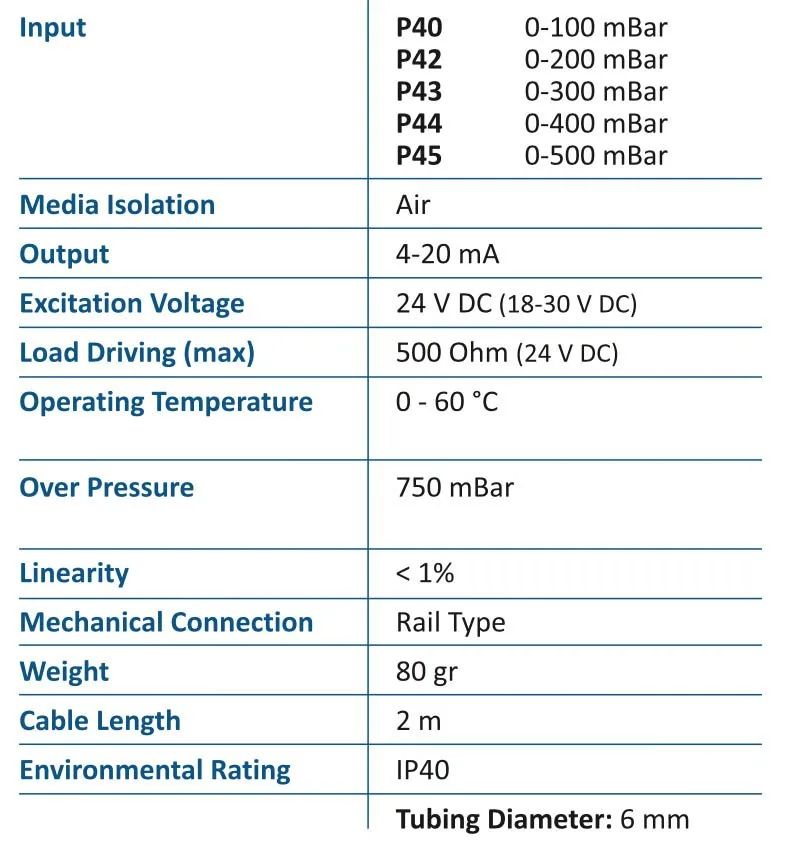

Technical specifications
- P40
- 0-100 mBar
- P42
- 0-200 mBar
- P43
- 0-300 mBar
- P44
- 0-400 mBar
- P45
- 0-500 mBar
- Media isolation
- Air
- Output
- 4-20 mA
- Excitation voltage
- 24 V DC (18-30 V DC)
- Load driving (max)
- 500 Ohm (24 V DC)
- Operating temperature
- 0-60 °C
- Over pressure
- 750 mBar
- Linearity
- < 1 %
- Mechanical connection
- Rail type
- Weight
- 80 gr
- Cable length
- 2 m
- Environmental rating
- IP40
- Tubing diameter
- 6 mm
