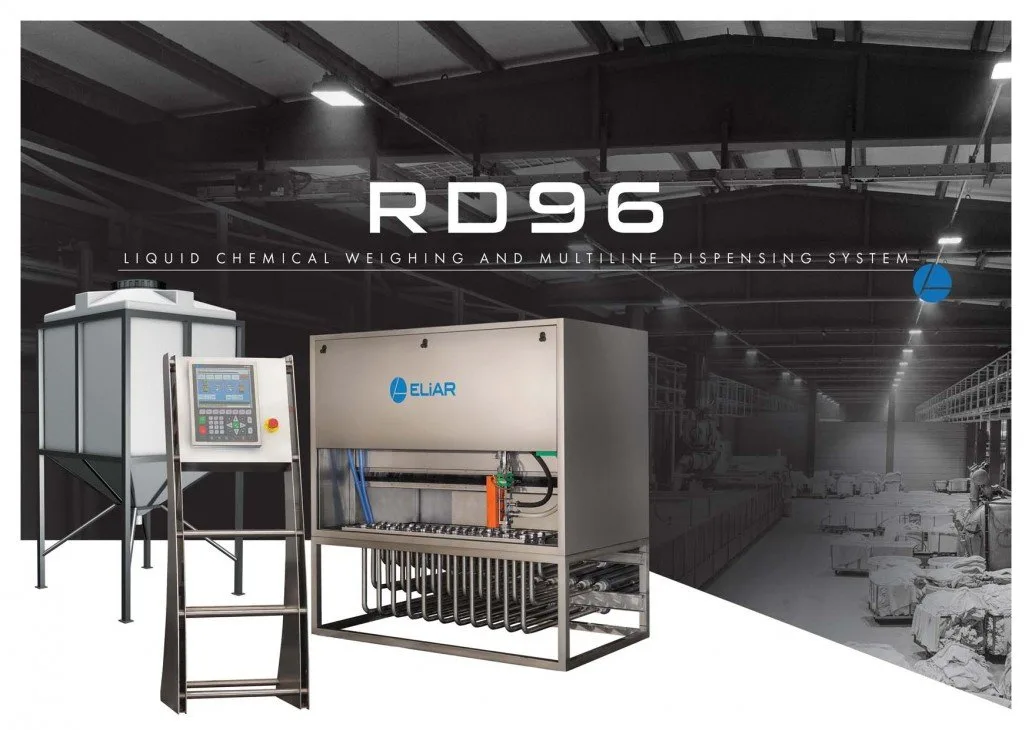

Liquid Chemical Weighing and Dispensing System
Liquid Chemical Weighing and Dispensing System
Fastest and most reliable
Liquid chemical weighing and dispensing is one of the most important steps in dyeing, and RD96 handles the whole process. Thanks to its special pump and flowmeter it is the fastest and most reliable liquid chemical dispensing system in the world.
- 33liquid chemicals
- 46transfer points
- 40 lt/mintransfer speed
- 800transfers a day
The fastest and most reliable way for liquid chemical dispensing

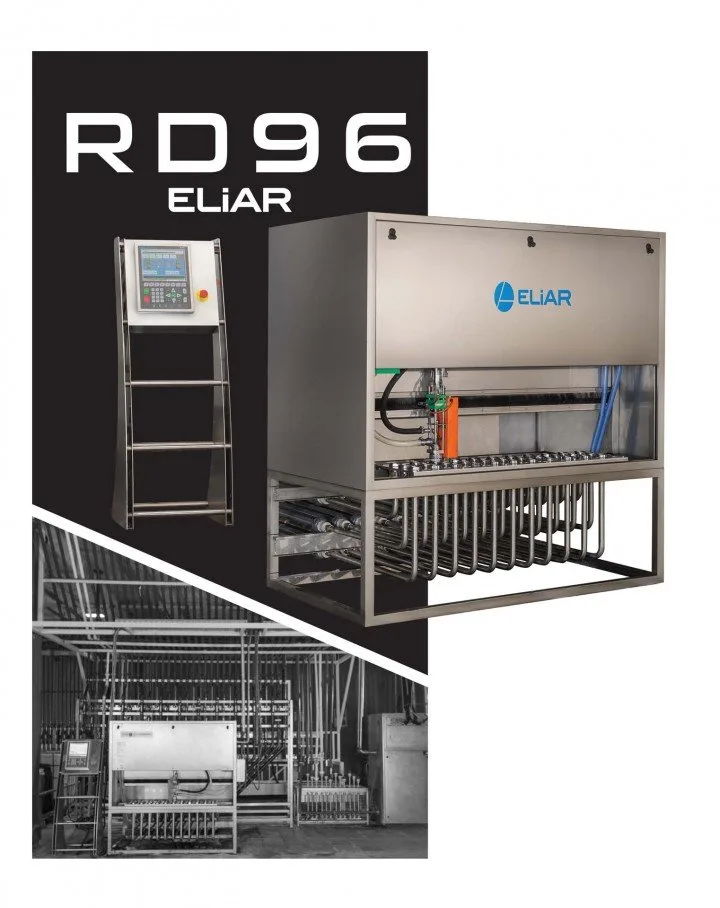

RD96 suits dyehouses of any size and conditions. It dispenses 33 liquid chemicals to 46 different transfer points at 40 liters a minute, and a single unit makes 800 transfers a day without delay or misrouting.
It was designed by ELİAR’s engineering team, drawing on 35 years of experience. ELİAR is a leading worldwide supplier of textile industry automation products.
Key features
Designed for your operation
RD96 is the multi-lined liquid chemical dispensing system, designed for your operations and processes. It is controllable in online or offline modes according to your production method.
- Compatible with all dyehouse systems
- Online or offline modes
Fastest weighing, fastest dispensing
RD96 can dispense 2 liquid chemicals simultaneously. With its 40 liters per minute transfer speed, it can dispense 800 liquid chemicals per day without any delay or misroutes.
- 800 transfers in 24 hours
- 33 different chemicals
Stock control and silo filling system
RD96’s silo filling system is covered with Poka-Yoke mistake proofing disciplines. With its special software and camlock integrated pumps, Eliar ensures 100% zero fault when filling a chemical into the right silo at high speed. With the help of level sensors, the system avoids overload or fully discharging the chemical silos.
- Stock control and silo filling software
- Poka-Yoke (mistake proofing)

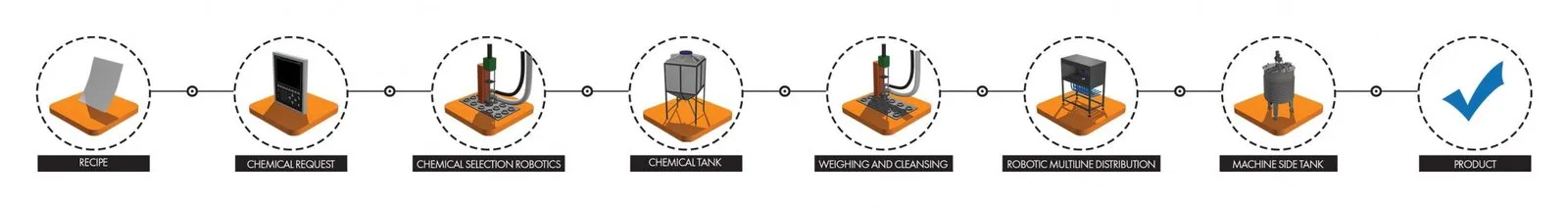

Robotic chemical selection and dispensing units
RD96 handles chemical selection and machine selection with separate robotic units. Thanks to the materials used on RD96 and its line cleaning system, the machine can work for decades without any problem. With the advantages of its valve free system, there are no huge maintenance and repair costs.
- Valve free system
- Low maintenance costs
Ready for future
RD96 is an Industry 4.0 ready, full-automatic chemical weighing and dispensing system. It is also integrated into your dyehouse systems through Teleskop software by ELİAR, which lets you work in touch with other machines and collect data throughout the dyeing process.
- Industry 4.0 ready
- Compatible with all kinds of chemicals
- Eliar software
Distribution options
RD96 is integrated with its special multiline distributors. There are two distribution unit options with 16 outlets and 23 outlets. With the additional dispensing unit, RD96 can cover the requirements of 46 dyeing machines for liquid chemicals. Eliar warrants the dispensing in the right time with the right dyestuff to the right machine with its Just in Time discipline.
- Multiline distribution
- Just in time
Questions about the RD96
Who supplies the RD96 in Pakistan?
EH Automation Services is the official representative of Eliar Elektronik in Pakistan. We supply the RD96 together with its installation, commissioning, operator training and after-sales support.
How do I get a quotation for the RD96?
Send the quotation form or call +92 322 6096616. Tell us which machines you run and what you want to automate. We usually reply within 24 hours and can arrange a visit to your mill before we quote.
Can the RD96 be added to machines we already run?
Yes. Eliar mechatronic are fitted to existing dyehouse equipment as well as to new lines. Our engineers check your machines first, then agree the scope of the installation with you.
