Textile Dyeing Controller
We take care of full automatic control of your dyeing machines.
Textile dyeing controller

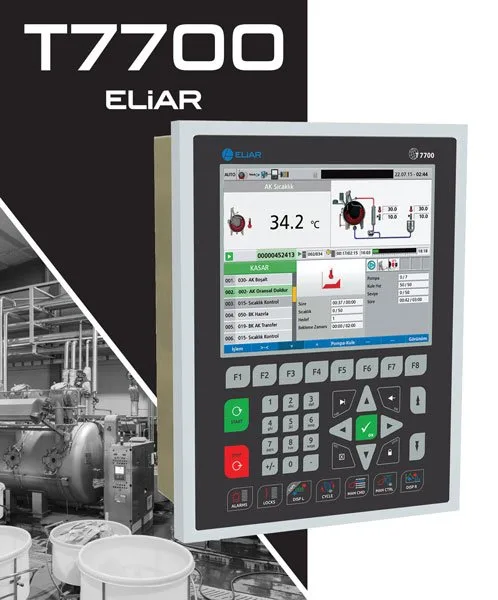

T7700 is a textile batch controller-operator terminal with online data supervision, multi-language support and a touchscreen. It helps you save energy, water, dyestuff and chemicals, work at full capacity with a non-stop continuous process, and get dyeing right the first time.
The T710 series was designed from 35 years of Eliar engineering experience and helps you control your textile dyeing machines safely and economically. Eliar produces both the hardware and the software.
Technical specifications
- CPU
- x86 based, 400 MHz
- Display
- 5.7” TFT, 640x480 dpi, 64 K color
- Keyboard
- 40 keys, industrial
- Working voltage
- 24 V DC (18-36 V)
- Power consumption
- 25 W OpTerm, 30 W EPAC/TBB PLC
- Working temperature
- 0-50 °C
- Humidity
- 10-85 % (non-condensing)
- Isolation
- 2000 V (digital), 500 V (analog)
- Parallel processing
- 15
- Real-time clock
- Yes
- I/O unit
- TBBPLC
- Communication
- USB 2.0, 10/100 Mb Ethernet
- Memory
- RAM: 256 Mb, Flash disk: 1 GB
- Protection rating
- IP 64 (front), IP 21 (rear)
- EMC compatibility
- EN 61000-4-2, 4-4, 4-6, 4-11
- Program and calibration download
- PC + USB
- Size
- 180x250 (front), 135x210 (rear), 150 (depth) mm
Key features
Online data supervision
Monitor the current and past processes of your machines and transfer the data to host systems.
Flexible configuration
Easy, customizable configuration straight from the user interface.
Multi-language support
Latin, Chinese, Arabic and Cyrillic alphabets. Language support: Turkish, English, Chinese, Arabic, Persian, Portuguese, Russian and many more.
Reliable Linux platform
Runs on a robust, naturally virus-protected Linux operating system.
Ethernet data acquisition
Easy, proper data exchange with host systems through your Ethernet infrastructure, using Eliar I/O modules.
Maintenance-free hardware
Industrial hardware that works properly in field conditions.
Questions about the T7700
Who supplies the T7700 in Pakistan?
EH Automation Services is the official representative of Eliar Elektronik in Pakistan. We supply the T7700 together with its installation, commissioning, operator training and after-sales support.
How do I get a quotation for the T7700?
Send the quotation form or call +92 322 6096616. Tell us which machines you run and what you want to automate. We usually reply within 24 hours and can arrange a visit to your mill before we quote.
Can the T7700 be added to machines we already run?
Yes. Eliar devices are fitted to existing dyehouse equipment as well as to new lines. Our engineers check your machines first, then agree the scope of the installation with you.
