T 200 E Textile Dyeing Controller

Textile dyeing controller

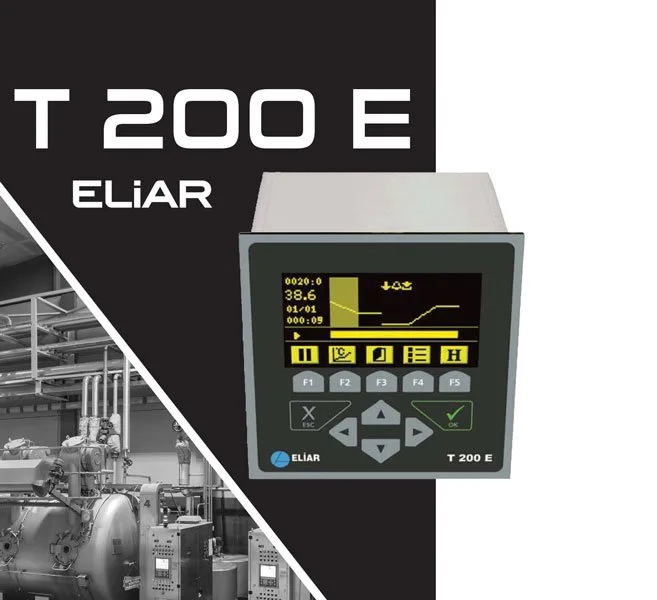

T 200 E is a microprocessor based ramping controller, especially designed and developed for the automation of textile dyeing machines. Thanks to its modular structure, the number of digital and analog inputs and outputs can be increased by adding I/O modules.

A graphical interface is used for both programming and monitoring the dyeing process. It is not limited to dyeing machines and is used wherever temperature ramping control is necessary. Designed by ELİAR from 35 years of engineering experience, with both hardware and software produced by ELİAR.

  • Dyeing programming and monitoring via graphical screen
  • 90 programs x 50 steps
  • 128x64 OLED graphical display
  • Modular I/O: 4/4/1/1 (min) to 12/12/3/3 (max) by miniMIO4411 module
  • PC connection and remote monitoring through Modbus RTU
  • Autotune for 2 independent loops (temperature and dosage control)
  • Last 8 hours of past, theoretical and realized batch processes (x2)
  • Archive of the last 10 alarms
  • 2 password levels
  • RS422 or RS232 serial connection (COM 200 module)
  • Turkish and English

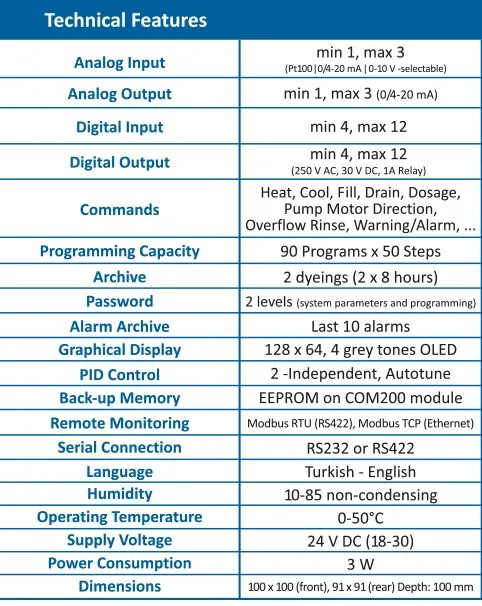

Technical specifications

Analog input
min 1, max 3 (Pt100, 0-20 mA, 0-10 V selectable)
Analog output
min 1, max 3 (0/4-20 mA)
Digital input
min 4, max 12
Digital output
min 4, max 12 (250 V AC, 30 V DC, 1 A relay)
Commands

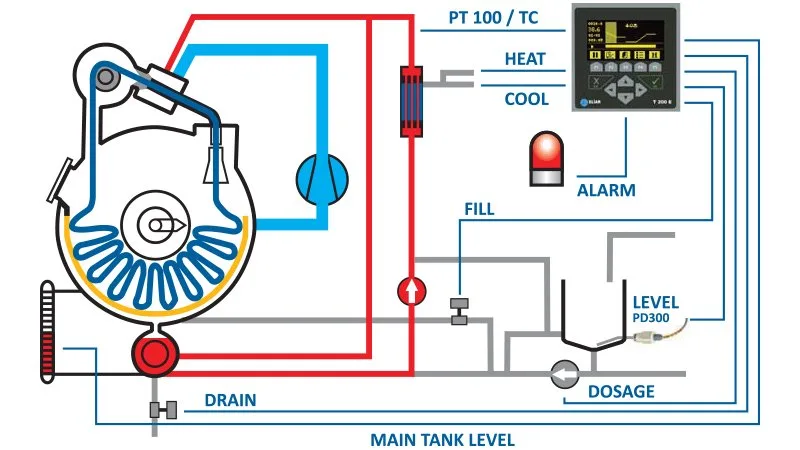

Heat, cool, fill, drain, dosage, pump motor direction, overflow rinse, warning/alarm and more
Programming capacity
90 programs x 50 steps
Archive
2 dyeings (2 x 8 hours)
Password
2 levels (system parameters and programming)
Alarm archive
Last 10 alarms
Graphical display
128x64, 4 grey tones OLED
PID control
2 independent, autotune
Back-up memory
EEPROM on COM200 module
Remote monitoring
Modbus RTU (RS422), Modbus TCP (Ethernet)
Serial connection
RS232 or RS422
Language
Turkish, English
Humidity
10-85 % non-condensing
Operating temperature
0-50 °C
Supply voltage
24 V DC (18-30)
Power consumption
3 W
Dimensions
100x100 (front), 91x91 (rear), depth 100 mm

Questions about the T 200 E

Who supplies the T 200 E in Pakistan?

EH Automation Services is the official representative of Eliar Elektronik in Pakistan. We supply the T 200 E together with its installation, commissioning, operator training and after-sales support.

How do I get a quotation for the T 200 E?

Send the quotation form or call +92 322 6096616. Tell us which machines you run and what you want to automate. We usually reply within 24 hours and can arrange a visit to your mill before we quote.

Can the T 200 E be added to machines we already run?

Yes. Eliar devices are fitted to existing dyehouse equipment as well as to new lines. Our engineers check your machines first, then agree the scope of the installation with you.
